Current Sensing and PWM Current Limiting
Peak-current-mode control is utilized to regulate output
voltage and provide pulse-by-pulse current limiting. The
switch current is detected by a sense resistor into the CS
pin. The PWM duty cycle is determined by this current-
sense signal and V FB . When the voltage on CS reaches
around V LIMIT =(V FB -1.2)/3, the switch cycle is terminated
immediately. V LIMIT is internally clamped to a variable
voltage around 0.85 V for output power limit.
Leading-Edge Blanking (LEB)
Each time the power MOFFET switches on, a turn-on
spike occurs on the sense resistor. To avoid premature
termination of the switching pulse, lead-edge blanking time
is built in. During the blanking period, the current limit
comparator is disabled; it cannot switch off the gate driver.
Under-Voltage Lockout (UVLO)
The turn-on, PWM-off, and turn-off thresholds are
fixed internally at 16 V / 10 V / 8 V, respectively.
During startup, the startup capacitor must be charged
to 16 V through the startup resistor to enable the IC.
The hold-up capacitor continues to supply V DD until
energy can be delivered from the auxiliary winding of
the main transformer. V DD must not drop below 10 V
during this startup process. This UVLO hysteresis
window ensures that hold-up capacitor is adequate to
supply V DD during startup.
Gate Output
The BiCMOS output stage is a fast totem-pole gate
driver. Cross conduction has been avoided to minimize
heat dissipation, increase efficiency, and enhance
reliability. The output driver is clamped by an internal
18 V Zener diode to protect power MOSFET transistors
against undesired over-voltage gate signals.
Over-Power Compensation
To compensate for the variation of a wide AC input
range, the DET pin produces an offset voltage to
compensate the threshold voltage of the peak current
limit for a constant-power limit. The offset is generated
in accordance with the input voltage when PWM signal
is enabled. This results in a lower current limit at high-
line inputs than low-line inputs. At fixed-load condition,
the CS limit is higher when the value of R DET is higher.
R DET also affects the H/L line constant power limit.
V AUX V IN
V DD Over-Voltage Protection
V DD over-voltage protection prevents damage due to
abnormal conditions. Once the V DD voltage is over the
V DD over-voltage protection voltage (V DD-OVP ) and lasts
for t VDDOVP , the PWM pulse is disabled until the V DD
voltage drops below the UVLO, then starts again.
Output Over-Voltage Protection
The output over-voltage protection works by the
sampling voltage, as shown in Figure 23, after switch-
off sequence. A 4 μ s blanking time ignores the leakage
inductance ringing. A voltage comparator and a 2.5 V
reference voltage develop an output OVP protection.
The ratio of the divider determines the sampling voltage
of the stop gate, as an optical coupler and secondary
shunt regulator are used. If the DET pin OVP is
triggered, the power system enters latch-mode until AC
power is removed.

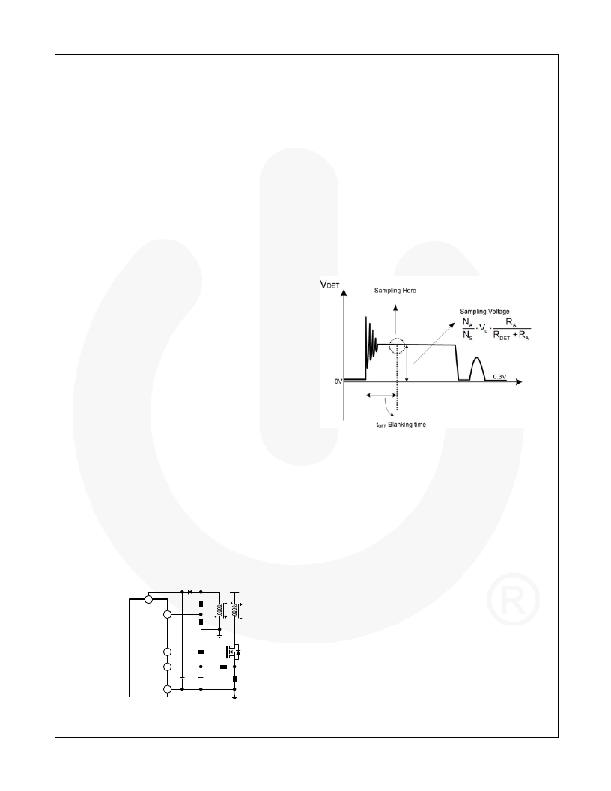

Figure 23. Voltage Sampled After 4 μ s
Blanking Time After Switch-Off Sequence
Short-Circuit and Open-Loop Protection
The FB voltage increases every time the output of the
power supply is shorted or overloaded. If the FB voltage
remains higher than a built-in threshold for longer than
t D-OLP , PWM output is turned off. As PWM output is
turned-off, the supply voltage V DD begins decreasing.
When V DD goes below the PWM-off threshold of 10 V,
V DD decreases to 8 V, then the controller is totally shut
down. V DD is charged up to the turn-on threshold voltage
of 16 V through the startup resistor until PWM output is
restarted. This protection feature continues as long as
the overloading condition persists. This prevents the
6
VDD
R DET
power supply from overheating due to overloading.
DET 1
R A
GATE 5
ON
CS 3
R S
GND 4
Figure 22. H/L Line Constant Power Limit
Compensated by DET Pin
? 2010 Fairchild Semiconductor Corporation
FL6300A ? Rev. 1.0.2
11
www.fairchildsemi.com
